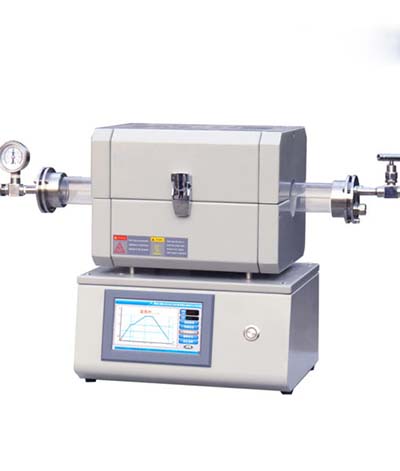

1200 type experiments Tube furnace
Product information
1200 experimental tube furnace is mainly used for experiments and small batch production in universities, research institutes and industrial and mining enterprises. It is also used for combustion, sintering, coating, high temperature pyrolysis, low temperature deposition of electronic and ceramic products.
The control system of the equipment is in a leading position, featuring safety and reliability, easy operation, accurate temperature control, effective thermal insulation, large temperature range, high uniformity of the furnace temperature, large temperature range, introduction of other atmospheres, and vacuum and control.
Model | TUBE-1200 |
Size of furnace tube | Φ40x1000mm; |
Heating zone | 300mm |
Constant temp zone | 200mm |
Heating element | Wire resistance |
Temperature | ≤1100°C |
Max temp | 1200°C; |
Temp control | Intelligent programmable control |
Temp accuracy | +/-1°C; |
Working voltage | AC220V 50/60Hz |
Rated power | 4KW |
Outside size | 700 x 440 x 720mm |
Weight | About 80kg |
Tube size, heating zone and contant temperature zone can be designed | |
